Hide bend line of Folded Beam in Detail View

Julio_Soto
Advisor
Advisor

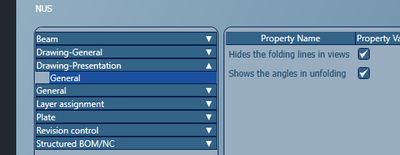

I have the presentation for Folded Beams set to "VissibleHidden" but it still shows the bend lines. I do have the box checked in the MT to hide the lines, but nothing. Very frustrating!









0 Likes
Accepted solutions (1)
650 Views
2 Replies
Replies (2)
Message 2 of 3

Sebastian_Eiche
Mentor
Mentor
Accepted solution

this is not the folded line itself, this is the start of the folding radius. This is a conturline and as I know this could not be deleted.
It like a specialpart, the edges of the solid are always shown, and here it's a bit similar. If you explode the folded element, you will see these lines, because they are needed to create the body.


Sebastian Eiche
Application Engineer @Mensch und Maschine acadGraph

EESignature

If this information was helpful, please use the Accept as Solution function, this make it easier for other users

0 Likes
Message 3 of 3

Julio_Soto
Advisor
Advisor

I was afraid of this.  I think the folded beam command is fantastic. But then I had to create detail for it and now I see those lines. This can make a part a little busy, especially if there is a lot more going on with the part. I suppose I could a custom profile, but it was just so easy to make a folded beam ;). It breaks my heart that I wont be able to use that feature ;(
