Custom Connection Bolt Grips

suesLPLV6
Advocate
Advocate

I created custom connections as shown in the picture attached.  The left shows the inserted custom connection with the bolt with the correct grip the right shows the bolt with an incorrect grip.  The original connection drawing shows both with the correct grip but when inserted it doesn't adjust to the correct grip/bolt length.  What am I missing here?image.png.



0 Likes
Accepted solutions (1)
1,314 Views
6 Replies
Replies (6)
Message 2 of 7

acbsdesign
Mentor
Mentor

@suesLPLV6 wrote:



What am I missing here?.




I do not know..., maybe saying a simple "Thank you" to others trying to you?







If this information was helpful, please use the Accept as Solution function, this makes it easier for other users.

Regards,
Ilko Dimitrov, IDC-1, M. Eng.
Tekla and Advance Steel Detailer
ACBS Structural Steel Detailing

If it is made of steel, I can model it and detail it.

acbs-usa.com | Helpful Place



0 Likes
Message 3 of 7

suesLPLV6
Advocate
Advocate

To @acbsdesign my apologies to you if I didn't properly thank you for your attempt at assisting me.  I work in an office with 15 engineers and I'm the only one working on Advance Steel so I'm the only one trying to make this work and I haven't got back to your solution as I try to put out the fires that are immediate.  I can only attach three images but I assure you I do thank people.

0 Likes
Message 4 of 7

acbsdesign
Mentor
Mentor



Send me the dwg file I will look at it.



Just from the JPG file I cannot say what is happening.



When we started with Advance there was a forum where we could get an answer in 21.5 days with AS having numerous bugs, not as polished as it is now.



People help each other here for free, with respect towards beginners, contributing their time and experience, and I do not know a single user who is sitting on a swinging chair counting birds in the backyard.









If this information was helpful, please use the Accept as Solution function, this makes it easier for other users.

Regards,
Ilko Dimitrov, IDC-1, M. Eng.
Tekla and Advance Steel Detailer
ACBS Structural Steel Detailing

If it is made of steel, I can model it and detail it.

acbs-usa.com | Helpful Place



0 Likes
Message 5 of 7

suesLPLV6
Advocate
Advocate

Just got pulled off of this it will have to wait.  THANK YOU though.

0 Likes
Message 6 of 7

ChristianBlei
Advisor
Advisor
Accepted solution

Hi,



If bolts connect the parts that you selected depends (among other things like does the projection of your insertion point hit the part) on the settings for the allowed gap between parts. Also the insertion is working from part to connected part.

THe standard setting for the max gap in management tools is 10mm for the internationla version.


THE 2 plates have a gap of 10 mm in between.



I change the gap to 100. now the parts are not bolted anymore, only one is.


The bolt properties have the setting "finish calculation at gap" which is checked by default. If you uncheck this in this specific sitation, thze bolts connection is no changed, because the gap is always in the direction of the bolt. If You move the bolt to the upper part and uncheck then, the connection gets updated.

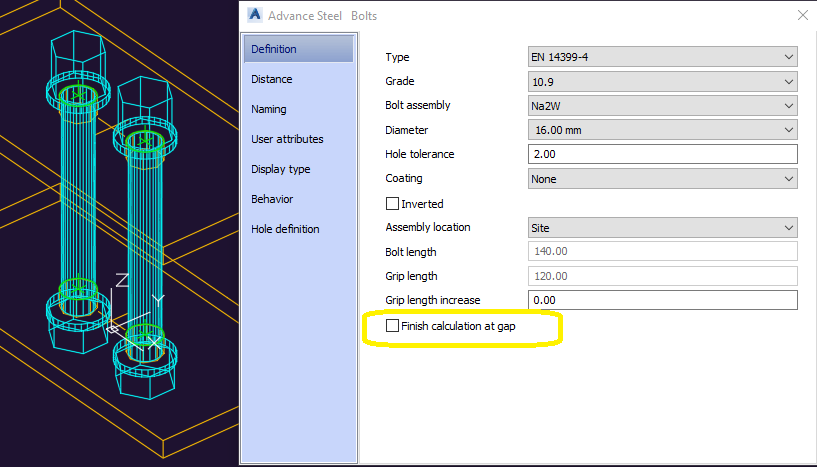

Gap 100.png



So the situations that you most likely have is that some of your connections have a gap below, some above this border.

Try unchecking the setting in your template connection.



HTH,

Christian Blei

Christian Blei
CBT Christian Blei Tools
christianblei.de
youtube.com/channel/UCxjA_NbeScQy9C0Z1xjwXpw
Message 7 of 7

suesLPLV6
Advocate
Advocate

Thank you ChristianBlei I was finally able to get back on this and when I changed the maximum gap in grip length calculation that resolved the issue.

0 Likes
