Modeling - Cutting of revolved structure

101 Views, 1 Replies
12-21-2011 01:21 AM

I have defined a cross-section and revolved it around an axis. The structure is made of panels.



How can I cut this structure against a plane?

Please use plain text.
Product Support
Rafal.Gaweda
Posts: 5,604
Registered: ‎04-26-2010

Re: Modeling - Cutting of revolved structure

12-21-2011 02:08 AM in reply to: Hallvard

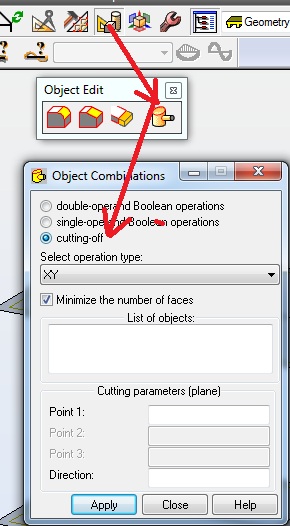

See below






Rafal Gaweda
