XYZ Component constraint

180 Views, 3 Replies
08-14-2012 10:56 AM

Heelo guys, can anyone help me with a little issue, I have an assembly which has components mated to a radial surface, I need to locate the center of a round slot against an axis, I have X Y coordinates, how can I constrain that part to those X Y coordinates? Thanks in advance!!.



Attached is a picture of the assembly.

*Expert Elite*
JDMather
Posts: 28,246
Registered: ‎04-20-2006
Message 2 of 4 (178 Views)

Re: XYZ Component constraint

08-14-2012 11:02 AM in reply to: diegomb86

I would use Assembly Constraints instead.

Pattern Workpoint (or other logical feature in the shaft part).

Component Pattern in the assembly.



Attach your assembly here if you can't figure it out.

I think there is a similar example in this document

http://home.pct.edu/~jmather/SkillsUSA%20University.pdf

Please mark this response as "Accept as Solution" if it answers your question.
-----------------------------------------------------------------------------------------
Autodesk Inventor 2015 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional
Inventor Professional 2015-SP1 64-bit
http://www.autodesk.com/edcommunity
http://home.pct.edu/~jmather/content/DSG322/inventor_surface_tutorials.htm
*Expert Elite*
Cadmanto
Posts: 3,356
Registered: ‎12-07-2011
Message 3 of 4 (127 Views)

Re: XYZ Component constraint

08-15-2012 06:37 AM in reply to: diegomb86

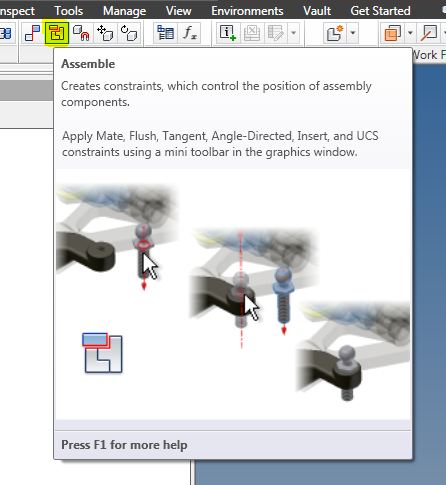

If I understand your issue correctly, I have had more luck using this command when it comes to situations like yours.




Best Regards,
Scott McFadden
Inventor Professional 2014
(Colossians 3:23-25)

*Expert Elite*
JDMather
Posts: 28,246
Registered: ‎04-20-2006
Message 4 of 4 (117 Views)

Re: XYZ Component constraint

08-15-2012 06:54 AM in reply to: Cadmanto

Cadmanto wrote:

...I have had more luck ...




I prefer logic.


The OP needs to clarify the problem statement through active discussion.

Please mark this response as "Accept as Solution" if it answers your question.
-----------------------------------------------------------------------------------------
Autodesk Inventor 2015 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional
Inventor Professional 2015-SP1 64-bit
http://www.autodesk.com/edcommunity
http://home.pct.edu/~jmather/content/DSG322/inventor_surface_tutorials.htm
