Hello all,



I made a new part right out of Assembly, shaft gen and then put a gear on the out side of one secion. When I pull it into  a drawing and try to section it, it comes out like so...



Bad Section.jpg



Obviously this section doesnt really show much of the inside. I thought maybe I had buggered a setting or something...so I created a new IPT and brought it into the drawing and it worked fine, like so....

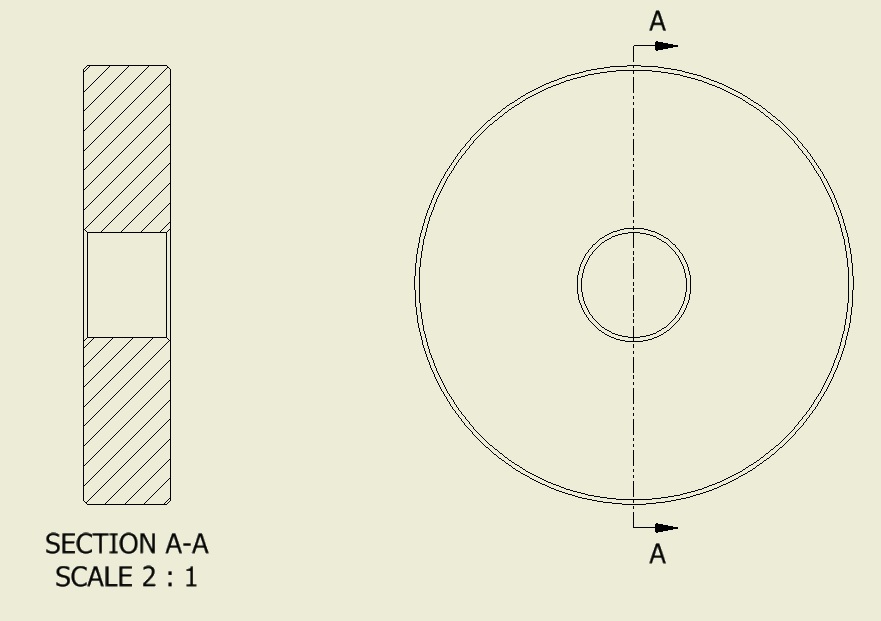

Good section.jpg



What gives? The only differnce really is that I created the first one entirely from assembly mode and the second from part mode. I have drawn many gears in recent times, dimensioned, sectioned ect with no issue... I also tried using the different options in the section pop up (Slice, full, distance, ect) I could make it section partially with a combination of options, but it wasnt proper like this second pic.



Any ideas?



TIA!



=]

-Randy

----------------------
Inventor 2015 PDS
*Expert Elite*
Cadmanto
Posts: 3,356
Registered: ‎12-07-2011
Message 2 of 4 (162 Views)

Re: Goofy Section

11-28-2012 06:19 AM in reply to: Talayoe

VIEW.JPGHi,

When you edit that view what setting do you have here?

Try "Always"





Best Regards,
Scott McFadden
Inventor Professional 2014
(Colossians 3:23-25)

*Expert Elite*
JDMather
Posts: 28,221
Registered: ‎04-20-2006
Message 3 of 4 (158 Views)

Re: Goofy Section

11-28-2012 06:24 AM in reply to: Talayoe

Can you attach the assembly here (only need two parts).

I have had something like that occur only if i dragged the view to the other side after creation.

Please mark this response as "Accept as Solution" if it answers your question.
-----------------------------------------------------------------------------------------
Autodesk Inventor 2015 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional
Inventor Professional 2015-SP1 64-bit
http://www.autodesk.com/edcommunity
http://home.pct.edu/~jmather/content/DSG322/inventor_surface_tutorials.htm
Mentor
Talayoe
Posts: 292
Registered: ‎10-17-2011
Message 4 of 4 (143 Views)

Re: Goofy Section

11-28-2012 06:37 AM in reply to: JDMather

Now, please let me be clear. I tried this last night on my laptop and that was where I thought my settings were goofy. So I tried this morning on my desktop. Same thing. I make this post. I get the email requesting the file, so what do I do? I rename the assembly from 'Assembly1' to 'Bad Section' ... and just for the sake of it try again with both suggestions.



Now it reacts perfectly... I tried pulling on both sides and it sectioned correctly. Tried changing the browser settings, but since it worked already from the pull there wasnt any change there.... And yet, if I create a new file I can replicate the original problem. With this in mind, I re-tried the 'obey browser..' and there was no change.



I have attached all nessesary files in a zip file.



I doubt this could be solely related to the file naming, but I have no clue. So I am good for the moment, but it still perplexes me why it does this.



tks guys!!

-Randy

----------------------
