PNEZD file import issue.

2074 Views, 28 Replies
04-20-2012 08:56 AM

Hello,

New to Civil3D 2012, so please bear with me.

I have a point file with <null> elevations. Somehow it won't let me import this .txt file (using pnezd comma delimited) into my .dwg. If I have elevations I have no problems. We tried creating a pned (comma delimited) and the <null> having an unused column and it didn't work.

Ideas? Thanks in advance.

Ok, just remove the quotes. When I said do a find and replace "<null>" with "0", I meant replace/use what was between the quotes.



Just for future refrence, when importing point files C3D doesn't like special characters. For instance if you had a description like TREE 10" OAK it would be truncated to TREE 10. For some reasone quotation marks end a description or in your case, skip the field entirely.

Valued Mentor
owenmull
Posts: 356
Registered: ‎09-06-2011
Message 2 of 29 (2,072 Views)

Re: PNEZD file import issue.

04-20-2012 09:12 AM in reply to: afdelarosa

afdelarosa wrote:

Hello,

New to Civil3D 2012, so please bear with me.

I have a point file with <null> elevations. Somehow it won't let me import this .txt file (using pnezd comma delimited) into my .dwg. If I have elevations I have no problems. We tried creating a pned (comma delimited) and the <null> having an unused column and it didn't work.

Ideas? Thanks in advance.


You are trying to import a .txt file in a .csv format (the PNEZD (comma delimited) is for .csv files)



Use the PNEZD (space delimited) to import a .txt file.



If that returns an error, edit the .txt file elevations, change <null> to 0. Then try again.

-Owen
Windows 7 x 64 bit
NVidia Quadro K3000M Dual Monitor
32.0 GB RAM
Intel Core i7-3820QM @ 2.70 GHz
Civil 3D 2013 SP 2
______________________________________________________________
Usually, I find that the problem is between the keyboard and the chair.
Contributor
JLHUesi
Posts: 14
Registered: ‎02-12-2009
Message 3 of 29 (2,059 Views)

Re: PNEZD file import issue.

04-20-2012 09:48 AM in reply to: afdelarosa

We usually just change the invalid indicator in the pnezd file format Elevation tab to <Null> and it works fine.

Valued Mentor
owenmull
Posts: 356
Registered: ‎09-06-2011
Message 4 of 29 (2,050 Views)

Re: PNEZD file import issue.

04-20-2012 10:10 AM in reply to: JLHUesi

I suppose that could work, but I'm hesitant to go in and start messing with AutoCADs native formats like that. Reason being, if your process changes in the future, and you use a different file type, that tool might not work anymore unless you remember to reset it to normal.



Much easier just to run a Find & Replace on a .txt or a .csv file instead, imho.

-Owen
Windows 7 x 64 bit
NVidia Quadro K3000M Dual Monitor
32.0 GB RAM
Intel Core i7-3820QM @ 2.70 GHz
Civil 3D 2013 SP 2
______________________________________________________________
Usually, I find that the problem is between the keyboard and the chair.
*Expert Elite*
wfberry
Posts: 1,936
Registered: ‎09-05-2006
Message 5 of 29 (2,040 Views)

Re: PNEZD file import issue.

04-20-2012 10:38 AM in reply to: owenmull

Just for the record, I have been using PNEZD comma delimited TXT files for over 20 years with no problem.  It shows examples right on the screen when you import them.  At least for the last 2 or 3 versions.



Bill



Distinguished Contributor
afdelarosa
Posts: 160
Registered: ‎09-23-2004
Message 6 of 29 (2,032 Views)

Re: PNEZD file import issue.

04-20-2012 11:04 AM in reply to: wfberry

Thanks to all for the responses.

When trying to select the pnezd comma delimited format on civil 3d it tells me the .txt file does not support this format. So I wonder if there is some setting unchecked somewhere. We used to do it all the time in Land Desktop with no issues.

Thanks.

*Expert Elite*
wfberry
Posts: 1,936
Registered: ‎09-05-2006
Message 7 of 29 (2,030 Views)

Re: PNEZD file import issue.

04-20-2012 11:16 AM in reply to: afdelarosa

Make sure it is a REAL txt file.  Open in Notepad and save in Notepad.  Also check for any lines of text before the first line of the PNEZD text.



Try the attached file.



Bill

*Expert Elite*
AllenJessup
Posts: 6,176
Registered: ‎05-21-2003
Message 8 of 29 (2,020 Views)

Re: PNEZD file import issue.

04-20-2012 11:56 AM in reply to: afdelarosa

If you could post the file or a small portion of it showing the Null elevation. It would help us diagnose the problem.



Allen

Distinguished Contributor
afdelarosa
Posts: 160
Registered: ‎09-23-2004
Message 9 of 29 (2,015 Views)

Re: PNEZD file import issue.

04-20-2012 12:20 PM in reply to: AllenJessup

Point issue2.jpgPoint issue.jpg

Distinguished Contributor
afdelarosa
Posts: 160
Registered: ‎09-23-2004
Message 10 of 29 (2,013 Views)

Re: PNEZD file import issue.

04-20-2012 12:21 PM in reply to: afdelarosa

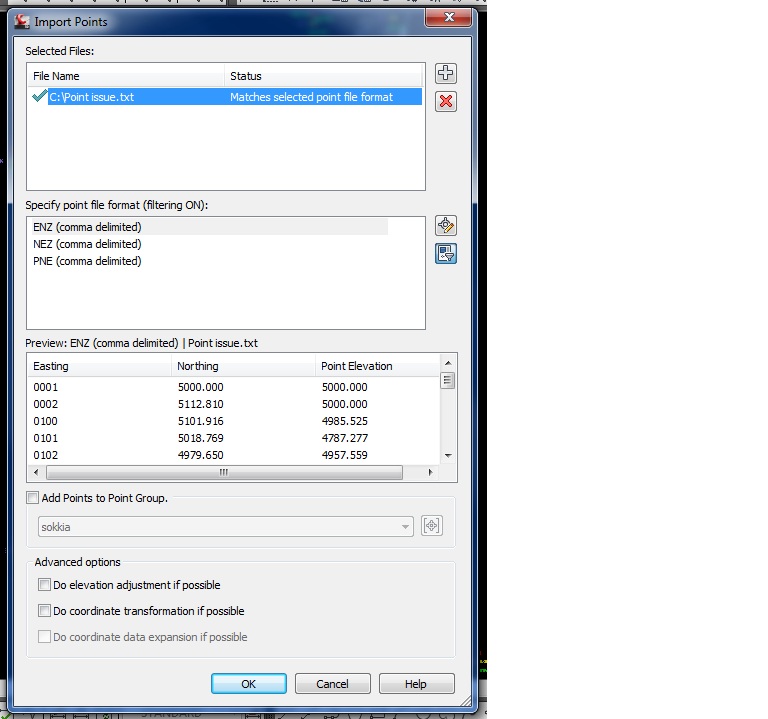

I also attached why I see when trying to import points. Note that the pnezd comma delimited option does not show and when I try to add it, it tells me it is an invalid format.

Thanks.
