Load sequencing/construction stages

18 REPLIES 18
SOLVED
Reply
Message 1 of 19
AlexS_2013
10928 Views, 18 Replies

Load sequencing/construction stages

Hi everyone,



I need to consider construction stages in my model of a high-rise building. There are levels with outriggers, so if I don't do that and apply whole dead load at once to a complete model, columns below levels with outriggers turn out to be in tension, what is obviously does not represent the "reality". In order to avoid that, dead load has to be applied as the building goes up, i.e. I need to consider load sequencing.



I tried phases in robot, but I think they are not applicable here. Robot treats each phase as a separate model, and there is no connection between them in terms of loading.



Anyone has an idea how to implement staged construction/load sequencing in robot?

Thanks.

18 REPLIES 18
Message 2 of 19
alfredmx
in reply to: AlexS_2013

Hello,



I've been able to do a staged analysis taking into account load sequence in Robot using information from individual models (note that bar elements must have the same number in all models). Due to the great amount of data that you need to save for each stage, I ended up writing a program.



Regards,

Message 3 of 19
Pawel.Pulak
in reply to: AlexS_2013

Load sequence in phases can be considered applying the self-weight load only to the story added in the appropriate phase. Then, after collecting all phases with the most complete phase treated as the base one, it is necessary to define a combination of these self-weight cases from all phases. It is illustrated on the screen capture below.




As concerns displaying results for such combination of results from various phases it is necessary to use RSA 2014 with Service Pack 3.

In previous versions Robot was able to display results for such combinations only for elements existing in all phases considered in the combination - so in practice only for the bottom story in the above example 😞



Regards,


Pawel Pulak
Technical Account Specialist
Message 4 of 19
AlexS_2013
in reply to: Pawel.Pulak

Thank you for your response!

To clarify, if after doing all this I want to use total dead load (with load sequencing) in load combinations, what should my approach be? Should I create design combinations for every phase? Or there is another faster way of doing that?

I'm a bit confused...

Message 5 of 19
Pawel.Pulak
in reply to: AlexS_2013

If these combinations "between phases" are related only to some types of loads (usuallly selfweight)  then there are some ways to simlify it, like for instance:

1/ defining design combinations in one phase - usually the most complete one, used as a base phase during collecting. In these combinations selfweight from this phase can be used

2/ after analysis and collecting of phases defining in the collected phase the combination of selfweight cases from various phases as mentioned by me before

3/ in the collected phase modifying the combinations defined in step 1/ in such way that the selfweight case from the base phase will be replaced by the combination defined in step 2/. Such modification can be done on the Edit tab of the table of combinations.



What is important in case of phase structures is that after any modification in any phase it is necessary to repeat analysis and to collect phases again - so steps 2/ and 3/ have to be repeated too:(

Some improvement wish related to it is registered there.



Regards,


Pawel Pulak
Technical Account Specialist
Message 6 of 19
Camh77
in reply to: Pawel.Pulak

Hi,



Any work example to show how to build this constructional sequence analysis for a high rise building?



Thanks



Message 7 of 19
mrkevinht91
in reply to: Camh77

Is it possible to copy loads to another story ? I have multi stories but add loads manually is not a good idea. I try the function "active story" in robot but it doesnt work.
Message 8 of 19
Rafal.Gaweda
in reply to: mrkevinht91

No you can not copy loads only.
Loads are copied together with copied objects if loads are assigned to them.


Rafal Gaweda
Message 9 of 19
t.sautierr
in reply to: mrkevinht91

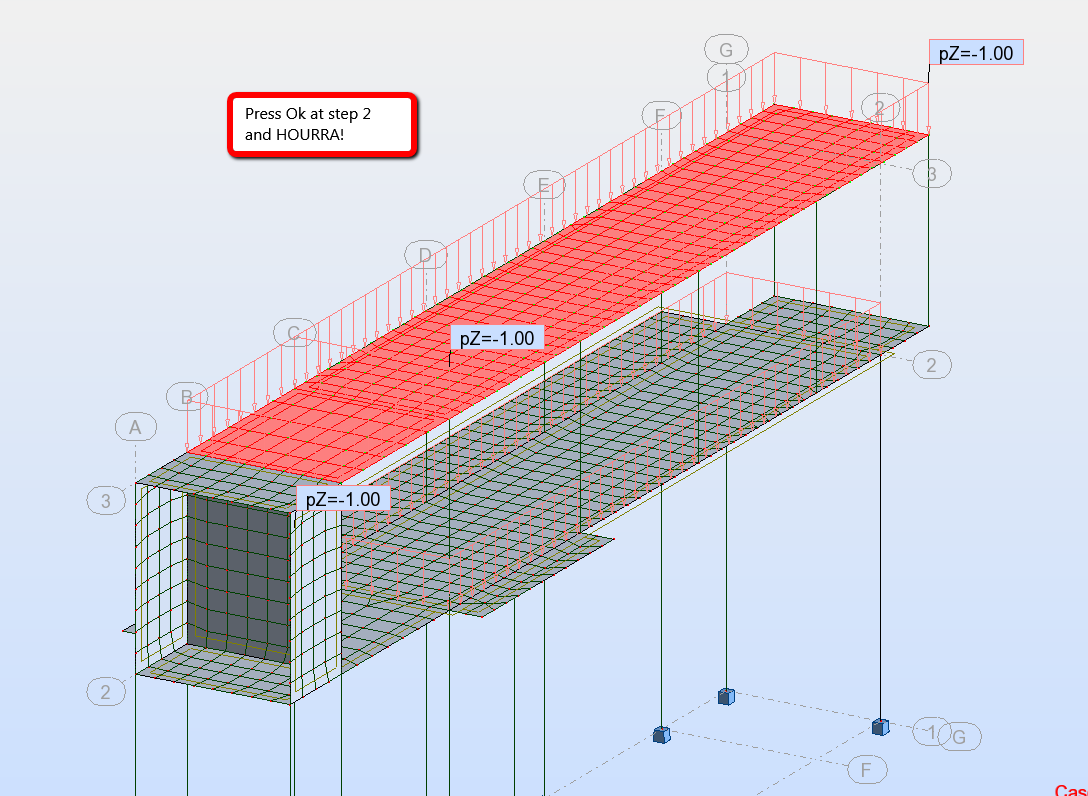

I don't know if is related with construction stage but apart editing the loading table to add element to one loading and therefore copying loads from element a to element b (doesn't work with contour load), you can do this :



Message 10 of 19
Pawel.Pulak
in reply to: Camh77

There were some requests (both in this forum thread and in private messages) related to showing how to model the construction sequence using phases.

Here is the short video illustrating it for a very simple model.
The model contains both bar elements (beams and columns) and wall panels composing 2D frame with 15 stories. It is done this way for simplicity and speed - analogous approach when extending it in 3D and adding slabs.
This tutorial shows the workflow corresponding to the screen capture in the Message 3 of this thread - the sequential application of self-weight useful especially in high RC buildings, where the differential axial shortening ( DAS ) effects may be significant.
I have also tried to show the efficient way of working with phases in Robot:
a/ remembering about freezing meshes to avoid problems to identify identical element after collecting phases
b/ avoiding work in maximized viewers to see the number of active phase in the title bar of each viewer or table
c/ preparing loads prior to defining phases to later avoid repetition to modify, add or delete them in many phases
...

Here are the main steps of the tutorial:

  1. checking whether FE meshes in panels are frozen
  2. opening the table of loads and minimizing windows to easily control the active phase in the title bars
  3. changing self-weight from “Whole structure” to “Part of structure” to avoid this operation later for each phase
  4. defining 15 phases (part of the video deleted to avoid repeated operations)
  5. modifying the list of elements to apply self-weight in each phase (part of the video deleted to avoid repeated operations)
  6. switching to the most complete phase "ph15 all" and defining the additional load case containing self-weight for whole structure to compare it later with the same load applied sequentially
  7. running analysis - it can be noticed that analysis is repeated for consecutive phases
  8. collecting phases with the most complete phase "ph15 all" as the base one - the collected phase (phase 0) contains results from all other phases (load cases from other phases transferred to it with 1000, 2000, 3000,... offset)
  9. defining in the collected phase (Ph:0) the combination to cumulate self-weight from all phases in the sequential way
  10. some comparisons to show the differences resulting from the sequential application of self-weight in phases (the combination defined in step 9/) and applying it together for whole structure (the load case defined in step 6/) - showing differences in deformed shape and in reactions. Generally these differences increase with the increase of the number of stories.

The example for simplicity does not contain other loads - in the typical situation they would be defined in the most complete phase (here phase "ph15 all")







I have also attached the 2 files corresponding to the beginning and the end of this demo.

Best regards,


Pawel Pulak
Technical Account Specialist
Message 11 of 19
pevelor
in reply to: Pawel.Pulak

Hi



I am unable to add liveloads in last phase. I am able to create the load case, but not add any loads.

I am, however, able to add liveloads in the collected structure. Is this the right way to do this or am I missing something?



Regards

Peder

Message 12 of 19
aimanalaawar
in reply to: Pawel.Pulak

Hi,

please can you tell me the steps to make a sequential analysis

I have defined the phases, but when i collect them the structure displayed is not the whole structure and i can not read results

please find the model attached

Thank you,

Message 13 of 19

hi. @Pawel.Pulak

Vi deo was deleted. Please bring it back. Thank you!

Message 14 of 19

Hi @ledinhchinh0409,

thank you for the heads up and pointing to this issue.

Video was not deleted but for some unknown reason the link stopped working after 4 years:(

I have regenerated the embed code link now.

Moreover to avoid similar problems in the future, I have added the video directly to this post in MP4 format.



Regards,


Pawel Pulak
Technical Account Specialist
Message 15 of 19
johnny.j.abdo
in reply to: Pawel.Pulak

Hi,
Is it possible to perform a modal + seismic analysis in phases? If yes, how? Since the whole seismic weight is required for this operation.
Thanks.
Message 16 of 19
Pawel.Pulak
in reply to: johnny.j.abdo

Yes, it can be done in the most complete phase.

As concerns considering mass it can be done directly from the density of materials used - "Disregard density" left inactive in modal analysis parameters.

If necessary to consider also masses from other dead loads then additional dedicated load cases, to be used only for load  to mass conversion, can be defined in this phase.



Regards,


Pawel Pulak
Technical Account Specialist
Message 17 of 19
johnny.j.abdo
in reply to: Pawel.Pulak

hi,
by most complete phase do you mean the collective one "Ph0" or the "Ph15" all in your video?
and for the load to mass conversion should i add the masses from the previous phases?
if you could provide us a simple demo video it would be great.
Thank you for your help.
Regards.

Message 18 of 19

hi. @Pawel.Pulak

Thank you very much for leading us in the issue of "phases".I think you should have a webinar or a video on this. For RSA marketing, we also need to understand it. With a simple construction but full of load.

Message 19 of 19
EY23
in reply to: Pawel.Pulak

HI Paul ,



I was trying to add seismic load, but I am facing some troubles regarding the story results table and I'm not sure if the definition of the load to mass conversion is correct. (I was trying to use the equivalent lateral force method)



Could you kindly guide us regarding this case?

Thanks
