CAD file fails to be imported,

386 Views, 6 Replies
10-11-2012 12:45 PM

CAD file fails to be imported,



As I attempted to import dwg file, I got the message below. What might be the problem?

The dwg file is attached



Thank you



Best



Jamal




----------------------------------------------------------
Jamal NUMAN, GIS and Civil Engineer, MSc
e-mail: JamaL9722060@yahoo.com
P.O.Box: 731, Ramallah, West Bank, Palestine.
----------------------------------------------------------
Software: AutoCAD 2014, AutoCAD C3D, AutoCAD M3D, Revit
Windows 7 (Ultimate 64 bits),
Firefox 20.0,
Kaspersky 2013.
*Expert Elite*
pendean
Posts: 21,655
Registered: ‎11-06-2003
Message 2 of 7 (352 Views)

Re: CAD file fails to be imported,

10-14-2012 06:14 AM in reply to: JamaL9722060
On that popup, the sentence in black in smaller letters explains the fix needed.
Dean Saadallah Blog | Facebook | Google+ | Twitter | PINS
Mentor
JamaL9722060
Posts: 1,302
Registered: ‎04-09-2010
Message 3 of 7 (343 Views)

Re: CAD file fails to be imported,

10-14-2012 01:23 PM in reply to: pendean

many thanks.



the dwg is already exploded, nevertheless, the problem is still there!



----------------------------------------------------------
Jamal NUMAN, GIS and Civil Engineer, MSc
e-mail: JamaL9722060@yahoo.com
P.O.Box: 731, Ramallah, West Bank, Palestine.
----------------------------------------------------------
Software: AutoCAD 2014, AutoCAD C3D, AutoCAD M3D, Revit
Windows 7 (Ultimate 64 bits),
Firefox 20.0,
Kaspersky 2013.
*Expert Elite*
CADastrophe
Posts: 3,118
Registered: ‎08-28-2009
Message 4 of 7 (324 Views)

Re: CAD file fails to be imported,

10-15-2012 05:32 AM in reply to: JamaL9722060

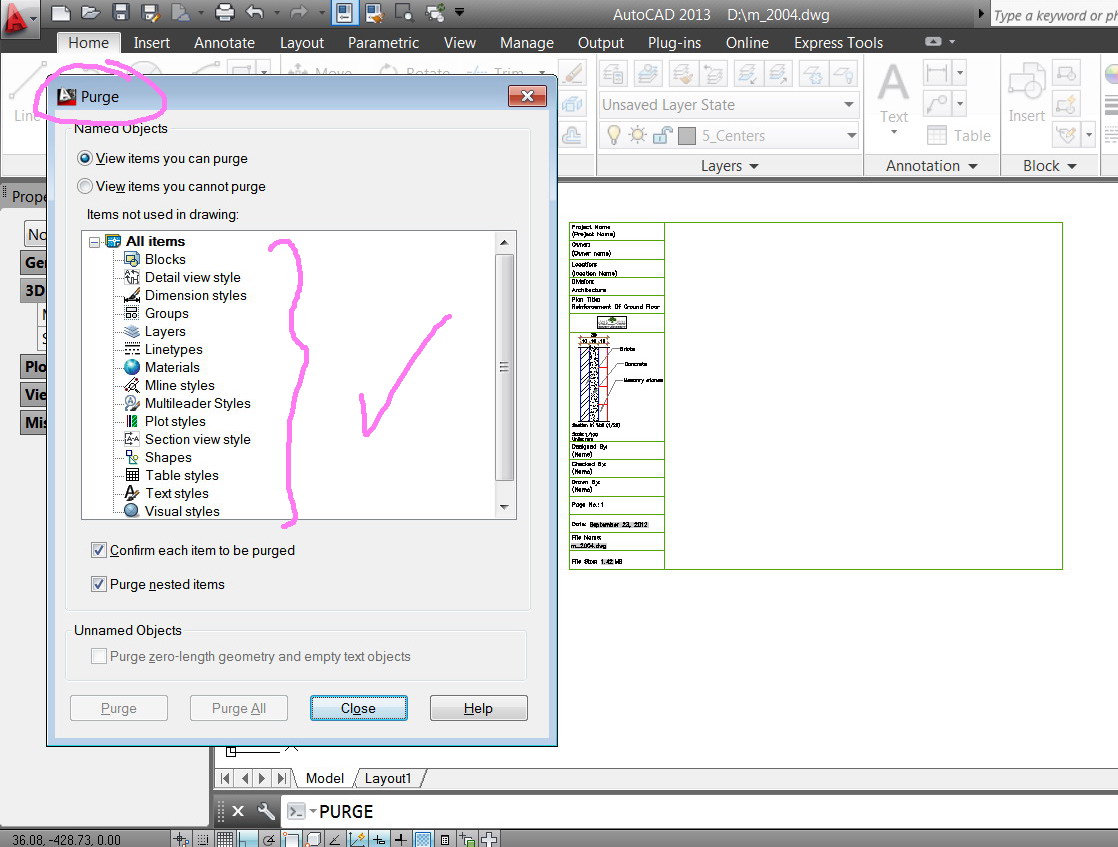

I was unable to open your .dwg file to test (I only have Revit 2013 installed at the moment), but I have read about a possible solution in the past that instructed to purge out all blocks and delete the existing Layout tabs. All of your geometry is in Modelspace, right?

Corey D.                                                                                                                  ADSK_Logo_EE_2013.png    AutoCAD 2014 User  Revit 2014 User
──────────────────────────────────────────────────────────────────────
⁞|⁞ Please use Mark Solutions!.Accept as Solution and Give Kudos!Give Kudos as appropriate to further enhance these forums. Thank you!
Mentor
JamaL9722060
Posts: 1,302
Registered: ‎04-09-2010
Message 5 of 7 (308 Views)

Re: CAD file fails to be imported,

10-15-2012 01:09 PM in reply to: CADastrophe

Many thanks for the answer.



I’m attaching the dwg file with version 2000. I purged but the problem persists to exist.



What might other solutions be?







----------------------------------------------------------
Jamal NUMAN, GIS and Civil Engineer, MSc
e-mail: JamaL9722060@yahoo.com
P.O.Box: 731, Ramallah, West Bank, Palestine.
----------------------------------------------------------
Software: AutoCAD 2014, AutoCAD C3D, AutoCAD M3D, Revit
Windows 7 (Ultimate 64 bits),
Firefox 20.0,
Kaspersky 2013.
*Expert Elite*
CADastrophe
Posts: 3,118
Registered: ‎08-28-2009
Message 6 of 7 (303 Views)

Re: CAD file fails to be imported,

10-15-2012 01:34 PM in reply to: JamaL9722060

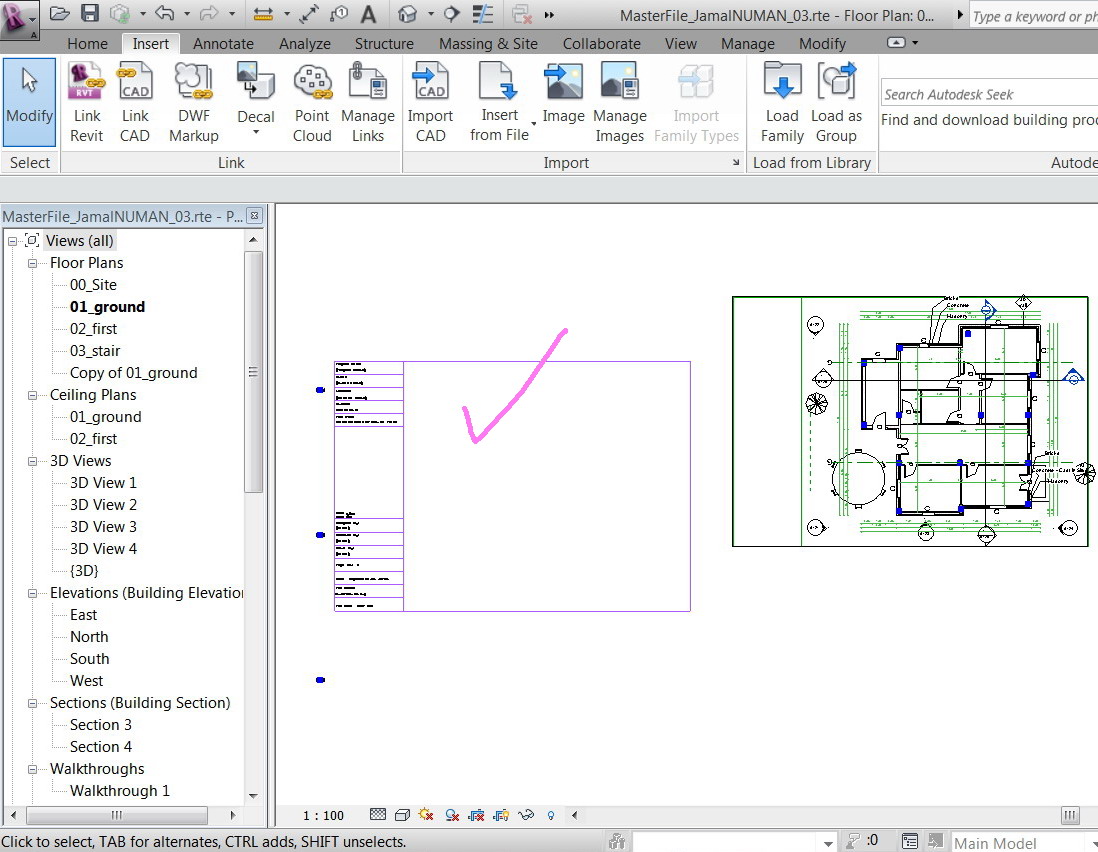

The source of this error appears to the OLE Object, the imported image. See image below. Upon deleting it and importing into Revit, the error desisted. The image does not appear to come through at all when imported.






I will suggest importing the dwg file into a new Detail Item Family. Then you can import the image into Revit from there. Load this family into Revit and you shouldn't have any more issues with this.

Corey D.                                                                                                                  ADSK_Logo_EE_2013.png    AutoCAD 2014 User  Revit 2014 User
──────────────────────────────────────────────────────────────────────
⁞|⁞ Please use Mark Solutions!.Accept as Solution and Give Kudos!Give Kudos as appropriate to further enhance these forums. Thank you!
Mentor
JamaL9722060
Posts: 1,302
Registered: ‎04-09-2010
Message 7 of 7 (297 Views)

Re: CAD file fails to be imported,

10-15-2012 02:00 PM in reply to: CADastrophe

Thank you for the prompt answer. Sounds to work fine. Very much appreciated.



Best



Jamal




----------------------------------------------------------
Jamal NUMAN, GIS and Civil Engineer, MSc
e-mail: JamaL9722060@yahoo.com
P.O.Box: 731, Ramallah, West Bank, Palestine.
----------------------------------------------------------
Software: AutoCAD 2014, AutoCAD C3D, AutoCAD M3D, Revit
Windows 7 (Ultimate 64 bits),
Firefox 20.0,
Kaspersky 2013.
