New VBA Drawing View Labels tool

[NachoShaw]

Hi,

i have made the previously posted code into a small VBA project. Please comment if you find it useful 🙂

This tool is for the drawing tab only.

Instructions

go to TOOLS tab and click the VBA editor button

in the VBA editor. go to FILE / Load Project

Browse to the project and click it to load (you need to save it in this path)

C:\Users\Public\Documents\Autodesk\Inventor 2013\VBA Addins (mine isnt but your should) 🙂

you should see it in the browser like this

Click save and close the editor. (when inventor Quits, it may ask you to save changes. Save them.

In Inventor, right click on the ribbon tab and select 'Customize user commands..'

you will get a box like this.

select 'Macros' in the top left drop down box

select 'Drawing | Tools' in the top right drop down box

Highlight the Macro called 'DrawingLabels' in the left pane and click the >> button to move it to the right (ribbon)

clict the check boxes like mine (to show text) and then click close.

Your button will then appear on the ribbon untder the 'Tools' tab like this

That should be it.

i ask that if you use my tool, you do NOT change the name 'ShawTools' or perceive it as your own tool. 🙂

There is a video of the tool here-Drawing Views Video

How it works-

Click you button to start the tool. it will appear like this-

Add Scale - when checked, it will include the active scale in the view label. There is also a visual guide under the image on the tool

This Sheet - when clicked (as shown) it will only change the views on the active sheet

All Sheets - when clicked, it will apply the view labels to ALL sheets in the drawing file

1/7 - this is a counter 1 being the sheet and 7 being the amount of sheets in the drawing file. you can see on the video that the number increases for every sheet that is selected. This it to give you an idea when it will finish.

Enjoy 🙂

Nigel

Thanks

[GosponZ]

Hi

Very nice and descriptive. I do have two or three problems.

1. I do not have that vba addins folder. Is that one you created?

2. I'm on 2012 - is that metter?

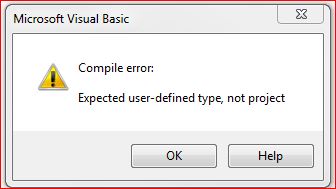

3. After i run macro got error

Public Sub SetViewLabels() and

Is it there way to fix i beleive this is good add save a lot time.

Thanks

[NachoShaw]

Hi

You should have a vba addins folder. If you go change the inventor 2013 to 2012 it should be in there. As a second option, open the vba editor and go to file / load project. That should open in the default location. You can drag / copy / paste the file into that location.

If you have any further issues, I'll export them as frm and bas files for you to import into your existing project



Thanks

Nigel

[GosponZ]

This is what i have i digg everywher but nothing i can find. This is default location.

Thanks for your help

[NachoShaw]

Hi

Ok. When you load the project from your current location, do you get any load errors? If not, when it's loaded do you get any run issues prior to closing inventor? My guess is that you are loading the project but because it might not be in the correct place, it doesn't load when inventor opens but the macro is looking for routine to call thius, you will get a project load error.

Goto to tools/application options and click onto the 'files' tab. The default folder location for vba addins should be shown as a path on this tab. Get the path and place the .ivb in there.

Let me know how you get on please 🙂



Nigel

[GosponZ]

Default vba project folder in app. opt is %PUBLICDOCUMENTS%\Autodesk\Inventor 2012\Default.ivb

and i do not have any problem to load project. But when i click run it make error in code as i described above

[GosponZ]

this is what i have when run

[NachoShaw]

Hi

It might be my error.... In the module,there should be a routine that calls the form it should look something like

Frm.DrawingViews Show

The name of that routine is what needs to be added to the menu button. I can't check right now because I'm not at a computer but as a guess, the routine you are calling is looking for form objects that are not there because the form isn't open. Also, this routine only works on drawing sheets.

Let me know how you get on please?



Thanks

[NachoShaw]

Did you get it working?

[GosponZ]

Not yet

[NachoShaw]

Well that is strange. I unloaded my project and reloaded it and it worked fine. Did you find the routine that opened the form? It's in the module. Please look for it and fun it to open the form. Also, in the project double click on the form to expose it in the designer then run it and try the form from there. I'm sure you have the wrong routine on the button 🙂

[GosponZ]

Ok this is what i have. I loaded DrawingViews.ivb and than run this is what i have.

[NachoShaw]

Hi

put this in your MODULE (make sure it doesnt already exist)

Public Sub DrawingLabels()
frmDrawingViews.Show
End Sub

then in the customize user commands, add the macro called 'DrawingLabels' to the menu. This will call the form and open it. You are getting the error because you are not calling the correct routine. Objects are required from the form and becaise it is not loaded, you get errors.

Please try this and get back to me. I have tested this on 3 computers 🙂

Thanks

Nigel

[GosponZ]

Do i missing in here? I do not have macro Drawing Views? Should i have ? This macro does nothing? When i click Macro icon on ribbon it happening nothing. Could you post again that ivb please. Something but little is wrong in here. I do have everything you are asking but still error.

Thanks again for your help

[NachoShaw]

Hi,

Unload the project

Restart inventor

Go to the VBA Editor and load project

create a NEW module in your APPLICATION PROJECT and call it MOD_DrawingViewCall

click into the module and paste this

Public Sub DrawingLabels()
frmDrawingViews.Show
End Sub

save & close the editor

right click on the menu to customize

the macro named "DrawingLabels" will be visible in the left pane

click it over to the right

that should be it. Download the file again from here, its the same as the one i made.

That should work just fine 🙂

Thanks

Nigel

[GosponZ]

I tried every possible solution but no success, unfortunately. I would like to have fix this one but ...

[NachoShaw]

Hi

I'm happy to remote connect to you so that I can set up up correctly. If you want me to do that, let me know and I'll go through the teamviewer tool.

It will take 2 mins



Thanks

[GosponZ]

Apreciate that but it is controlled by corporate and it is not allowed.:(
