hello.

I have created a pipe using sweep through 2 planes and 3d sketch. I want a specific bend on that pipe to be extracted for drawing purpose. How do I do that ?

thanks in advance

[#2]

Can you Retrieve the 2D generating sketches in the drawing?

[#3]

dont think so. cant see eny 2d sketch, only 3d.

picture is attached

[#4]

Can you post the part?

[#5]

yes, here you go

[#6]

You might have to make them visible in ipt first, I don't recall for sure.

[#7]

If they are not visible in ipt, after retrieving them right click and Include.

[#8]

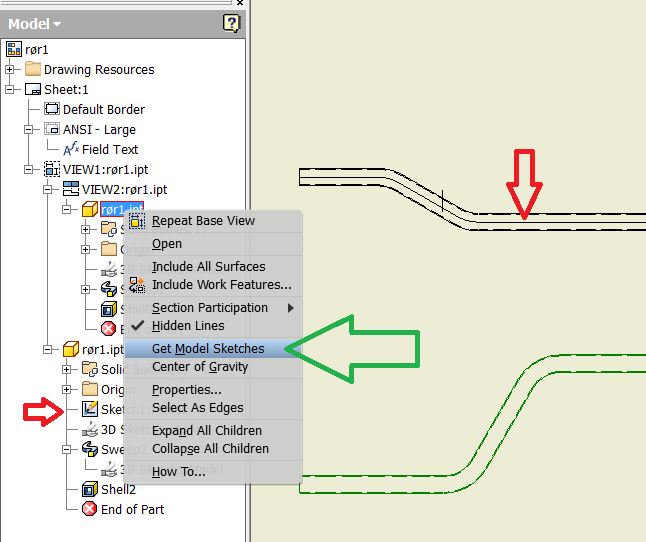

ok. I can retrieve the 2D sketch's but how will that help me, retrieve the bend to a standalone part and putting angle dimensions on a bend part ? if you noticed the bend is bended through 2 axis.

I can be more specific, I must find the rotation degrees of that bend and put them on a drawing.

[#9]

here an example of what im looking for, but the method is really dirty.

also note the picture, thats the angle im looking for.

[#10 · Accepted solution]

Could you add workplanes to your part? Then use the workplanes and the Change View Orientation tool to get the drawing view into the correct orientation.
