    glass

    Options
    309 Views, 8 Replies
    09-01-2012 05:18 AM

    Is there a appearance material "Glass" in Inventor 2013.Was in 2012 but i cannot find in 2013



    Dane

    Report Inappropriate Content
    Message 1 of 9 (309 Views)
    Reply
    0 Kudos
    Please use plain text.

    Employee jingyi.liu
    Employee
    Posts: 82
    Registered: ‎08-28-2007

    Re: glass

    Options
    09-02-2012 06:14 PM in reply to: dane_m_steyne

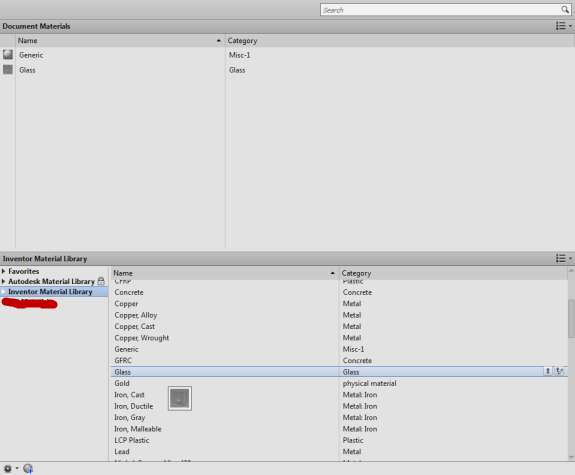

    yes, you can find it in Inventor Material Library, please see below screereply.pngn capture.

    Inventor Professional 2013

    Jingyi Liu
    Quality Assurance Team
    Autodesk
    Report Inappropriate Content
    Message 2 of 9 (275 Views)
    Reply
    0 Kudos
    Please use plain text.

    Valued Contributor dane_m_steyne
    Valued Contributor
    dane_m_steyne
    Posts: 79
    Registered: ‎10-01-2011

    Re: glass

    Options
    09-03-2012 04:55 AM in reply to: jingyi.liu

    I have the "Glass" effect but how do i get rid of the black lines.Photo attached for 2013



    Dane

    Attachment glass.png ‏96 KB
    Report Inappropriate Content
    Message 3 of 9 (237 Views)
    Reply
    0 Kudos
    Please use plain text.

    *Expert Elite*
    *Expert Elite*
    Posts: 21,724
    Registered: ‎04-20-2006

    Re: glass

    Options
    09-03-2012 05:30 AM in reply to: dane_m_steyne

    Select a Visual Style other than Shaded with Edges (Shaded or Realistic).

    Please mark this response as "Accept as Solution" if it answers your question.
    -----------------------------------------------------------------------------------------
    Autodesk Inventor 2013 Certified Professional
    Autodesk AutoCAD 2013 Certified Professional
    Certified SolidWorks Professional
    Inventor Professional 2013 SP 1.1 Edu 64-bit
    GeForce GTX 560M i7-2670QM @ 2.2GHz 8GB RAM
    http://home.pct.edu/~jmather/content/DSG322/inventor_surface_tutorials.htm
    http://www.autodesk.com/edcommunity
    Still waiting for -Draft option on any Rib feature.
    Report Inappropriate Content
    Message 4 of 9 (227 Views)
    Reply
    0 Kudos
    Please use plain text.

    Valued Contributor dane_m_steyne
    Valued Contributor
    dane_m_steyne
    Posts: 79
    Registered: ‎10-01-2011

    Re: glass

    Options
    09-03-2012 05:51 AM in reply to: JDMather

    I did try that but the lines are still there



    Dane

    Report Inappropriate Content
    Message 5 of 9 (218 Views)
    Reply
    0 Kudos
    Please use plain text.

    *Expert Elite*
    *Expert Elite*
    Posts: 21,724
    Registered: ‎04-20-2006

    Re: glass

    Options
    09-03-2012 05:55 AM in reply to: dane_m_steyne

    Is it a solid body or a surface body?

    Can you attach the file here?

    Please mark this response as "Accept as Solution" if it answers your question.
    -----------------------------------------------------------------------------------------
    Autodesk Inventor 2013 Certified Professional
    Autodesk AutoCAD 2013 Certified Professional
    Certified SolidWorks Professional
    Inventor Professional 2013 SP 1.1 Edu 64-bit
    GeForce GTX 560M i7-2670QM @ 2.2GHz 8GB RAM
    http://home.pct.edu/~jmather/content/DSG322/inventor_surface_tutorials.htm
    http://www.autodesk.com/edcommunity
    Still waiting for -Draft option on any Rib feature.
    Report Inappropriate Content
    Message 6 of 9 (213 Views)
    Reply
    0 Kudos
    Please use plain text.

    Valued Contributor dane_m_steyne
    Valued Contributor
    dane_m_steyne
    Posts: 79
    Registered: ‎10-01-2011

    Re: glass

    Options
    09-03-2012 06:08 AM in reply to: JDMather

    it is a solid part...attached



    Is there anything you noticed that i may have missed



    Dane

    Attachment Par5.ipt ‏117 KB
    Report Inappropriate Content
    Message 7 of 9 (207 Views)
    Reply
    0 Kudos
    Please use plain text.

    *Expert Elite*
    *Expert Elite*
    Posts: 21,724
    Registered: ‎04-20-2006

    Re: glass

    Options
    09-03-2012 06:16 AM in reply to: dane_m_steyne

    No lines on my screen when I do Shaded visual style with your part.



    Not sure if it could be something you've changed in Tools>Application Options or something to do with your graphics card/driver.

    Please mark this response as "Accept as Solution" if it answers your question.
    -----------------------------------------------------------------------------------------
    Autodesk Inventor 2013 Certified Professional
    Autodesk AutoCAD 2013 Certified Professional
    Certified SolidWorks Professional
    Inventor Professional 2013 SP 1.1 Edu 64-bit
    GeForce GTX 560M i7-2670QM @ 2.2GHz 8GB RAM
    http://home.pct.edu/~jmather/content/DSG322/inventor_surface_tutorials.htm
    http://www.autodesk.com/edcommunity
    Still waiting for -Draft option on any Rib feature.
    Report Inappropriate Content
    Message 8 of 9 (202 Views)
    Reply
    0 Kudos
    Please use plain text.

    Valued Contributor dane_m_steyne
    Valued Contributor
    dane_m_steyne
    Posts: 79
    Registered: ‎10-01-2011

    Re: glass

    Options
    09-03-2012 06:29 AM in reply to: JDMather

    Thanks JD,i will look at the Tools>Application Options or something to do with your graphics card/driver.
