I am in a IDW for an assembly file. burried deep inside , there is a part that need to be present in assembly (But in reference BOM condition)

When I insert a view with HLR option, why this part visible in dashed line. Whereas it supposed to Not Showup at all?

Example : Say I have a assembly of a spheres dia 5in & dia 3in (assembled center on center). The smaller sphere is in reference BOM mode. In the drawing view with Hidden Lines Removed option why is the smaller sphere visible in hidden line?

[#2 · Accepted solution]

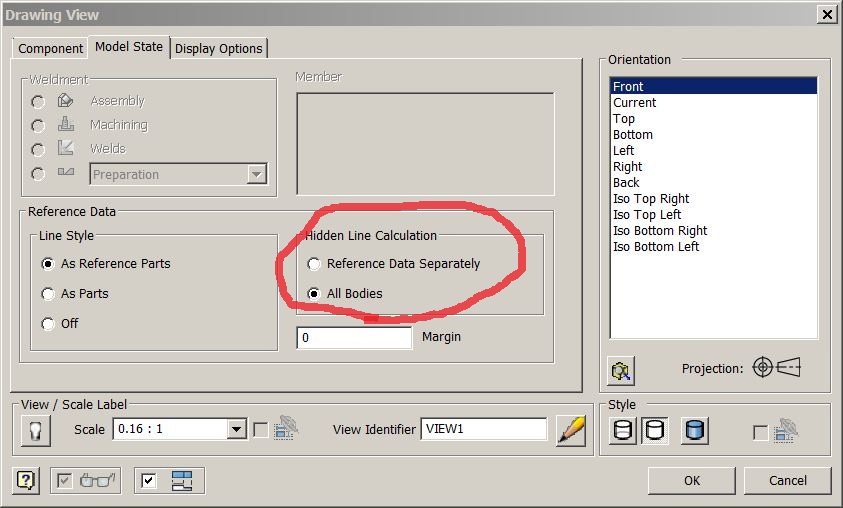

Edit: You probably want to check the "As Parts" option to the left of it as well to get normal behaviour out of it.

[#3]

Thanks for the solution.
