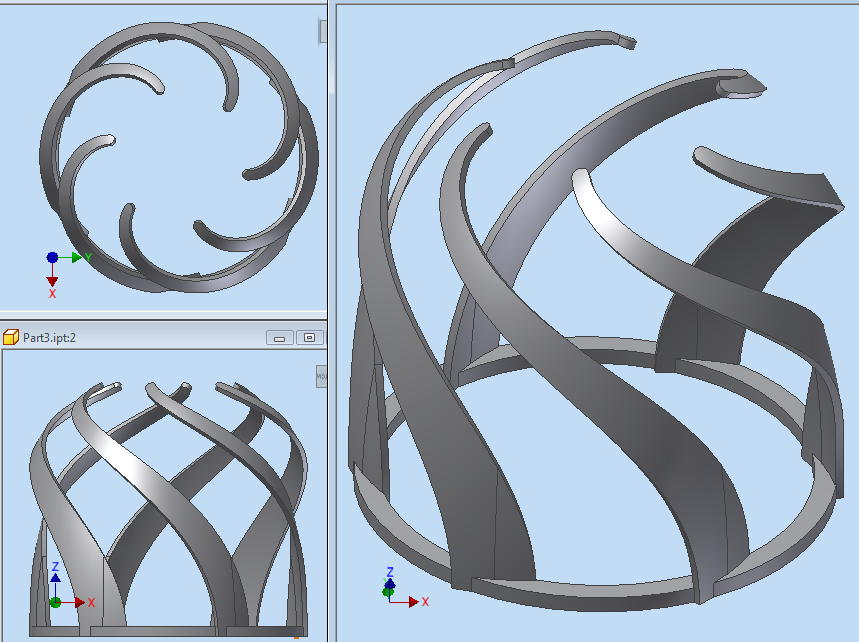

I am trying to draw this cutterhead.  The 3D sketch and helical curve commands have a allowed me to create part of the "arms" with the teeth on them but I can't seem to get them to come up and over the hub in the middle.  Only to the top of it.  Any tips?  Thanks.

[#2]

Attach your ipt file here.

[#3]

Why did you use Driven rather than Driving dimensions in Sketch10?
I would have used the edge of a Coil surface body rather than the 3D sketch - much easier to control.

I would avoid adaptivity for this design.
Sketch12 is not constrained.

You might start with this document http://home.pct.edu/~jmather/skillsusa%20university.pdf

I suspect I would Thicken a trimmed helical surface.

[#4]

Do you have a picture from side and top?  You have an assembly - do you have a 2D drawing from which it was made?

[#5]

Here is an alternate solution - more information would be needed to get precise representation.

[#6]

Have you made an progress on this?

[#7]

I had to move to something else but will be back on the cutterhead later this week.  Thanks for your input.  I will be keeping you involved with my progress.  And I'm sure I will have more questions for you.

[#8]

Mr. Mather,
