    Hello,

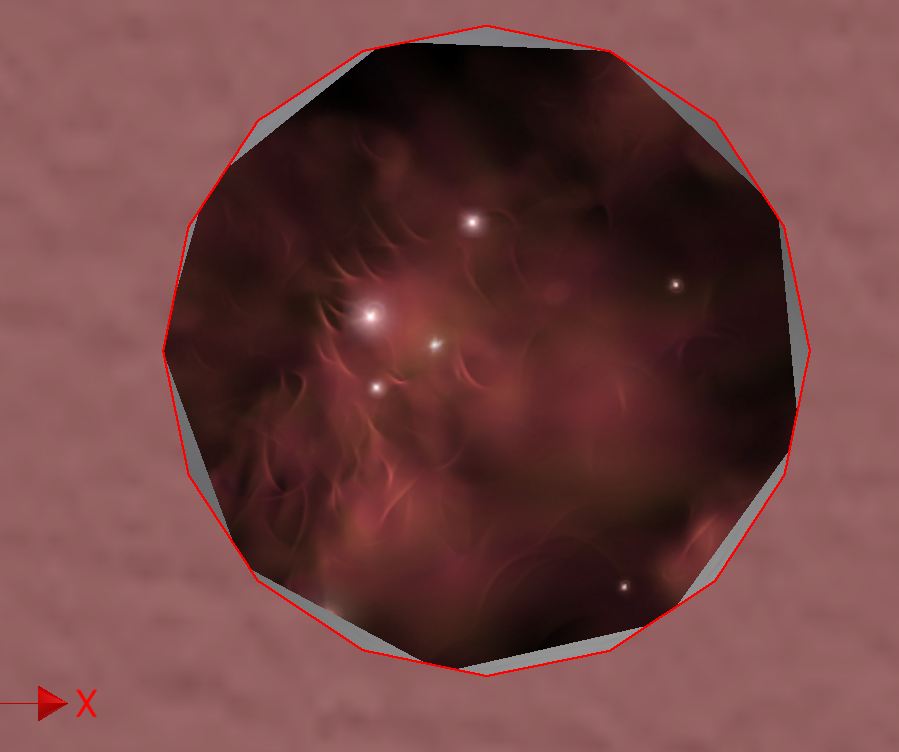

        I made a cylinder which is in the attachment. When I flat pattern produce its dxf file, I am not able to get correct geometries. When I zoom into the dxf file, I see that the inner hexagon and circles project irregular shapes and are not concentric.

    Please use plain text.
    *Expert Elite*
    mrattray
    Posts: 1,453
    Registered: ‎09-13-2011

    Re: DXF

    09-20-2012 05:25 AM in reply to: satbir.sohal

    The flat patern is corect, it's your folded model that's wrong. The way you cut those, well, cuts, is not perpendicular to the face. I suggest you remodel this using a contou flange, then the unfold feature. Make all of your cuts after the unfold feature, then follow it up with a refold. This will cause the edges of the cuts to stay perpendicula to the material and allow the expected flat pattern to be created.

    Mike (not Matt) Rattray

    Please use plain text.
    Contributor
    Posts: 15
    Registered: ‎08-14-2012

    Re: DXF

    09-20-2012 05:43 AM in reply to: mrattray

    Thank you for the reply. I tried that before, but its a lengthy procedure and I had to manually calculate the circumference and pitch and then convert them into rectangular pattern. Is there no alternative option where I can get these done quickly ?

    Please use plain text.
    *Expert Elite*
    mrattray
    Posts: 1,453
    Registered: ‎09-13-2011

    Re: DXF

    09-20-2012 05:46 AM in reply to: satbir.sohal

    You could just enter a formula intot the rectangular pattern spacing instead of hand calculating it. This way it will be linked to the radius of the cylinder.

    Mike (not Matt) Rattray

    Please use plain text.
    *Pro
    jletcher
    Posts: 1,316
    Registered: ‎05-18-2011

    Re: DXF

    09-20-2012 05:52 AM in reply to: satbir.sohal

    Can you post a pic of the part I cannot open your part I will not install 2013 again.


    Please mark this response as "Accept as Solution" if it answers your question.

    James Letcher
    2012 Factory Design Suite ( will not load 2013)
    What happen to my Inventor :-(
    Please use plain text.
    *Expert Elite*
    mrattray
    Posts: 1,453
    Registered: ‎09-13-2011

    Re: DXF

    09-20-2012 05:56 AM in reply to: jletcher


    Mike (not Matt) Rattray

    Please use plain text.
    Contributor
    Posts: 15
    Registered: ‎08-14-2012

    Re: DXF

    09-26-2012 03:08 AM in reply to: mrattray

    Hello,

        Can you please make a similar cylinder using contour flange and send me the ipt file. as I am unable to get it.



    Thanks

    Please use plain text.
    Active Member
    Posts: 10
    Registered: ‎09-26-2012

    Re: DXF

    09-26-2012 09:27 PM in reply to: satbir.sohal

    Another option I regularily use is to create a solid of what I want (including the angled cut and the holes/projections) and use the Derive the Thicken method from the sheet metal file. Works great and gets all of the cuts perpendicular with the sheet metal face.

    Brendan Henderson
    CAD Manager/Owner

    BLH Drafting Services
    Web www.blh.com.au
    Twitter @BLHDrafting

    Inventor 2012 PDS Premium SP 2 and Vault 2012 Update 1

    Please mark as Accepted As Solution or give Kudos.
    Please use plain text.
    Mentor
    CAD-One
    Posts: 634
    Registered: ‎10-26-2008

    Re: DXF

    09-27-2012 04:24 AM in reply to: satbir.sohal
    BLHDrafting- Sounds interesting. Can you eloborate " derive the thicken method"
    C1
    Inventor Professional 2013
    Vault Collaboration 2013
    Please use plain text.
    Active Member
    Posts: 10
    Registered: ‎09-26-2012

    Re: DXF

    09-30-2012 04:46 PM in reply to: satbir.sohal

    No problems.



    Here is a link to a short video of using the Derive and Thicken method. You basically make a positive (or negative) and import this shape as surfaces, then thicken the surfaces you want. Any protrusions you have in the solid can also be included in this method. Good luck.



    http://screencast.com/t/VLBL762Cnck

    Brendan Henderson
    CAD Manager/Owner

    BLH Drafting Services
    Web www.blh.com.au
    Twitter @BLHDrafting

    Inventor 2012 PDS Premium SP 2 and Vault 2012 Update 1

    Please mark as Accepted As Solution or give Kudos.
