I have issues for creating the equipment (Vessel) I tried to made one vessel by Plant 3D I faced problem to get the shape what I want, I did by CADWORX Equipment and I attach the both did by CADWORX & PLANT 3D did I missed something in the plant 3D??
Solved! Go to Solution.
Try setting to value for dimension SF for the 2:1 Torispheric Head to 500 rather than 50.
In the image below, SF=50 is on the left and SF=500 is on the right:
I hope this helps.
Thanks Dan For Your Reply, it's Working but i suggestion for this point butter if give one more dimension For
Torispheric head (H) for Height.
One more Issue for Creating Nozzle in the Equipment’s. I finalize the all nozzles in the equipment and get some new
Changes like (Re numbering the nozzle & Delete some of Nozzle how i can do that

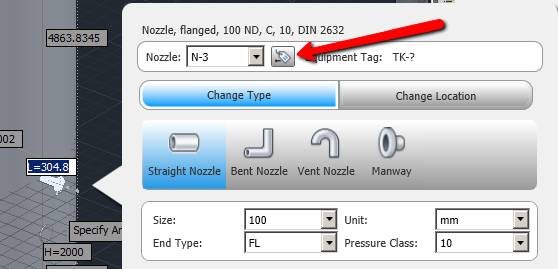

If you Ctrl+Left Click the nozzle you should see a pencil icon. Click the pencil and you can edit the nozzle tags:
Could you "accept as solution" if this has solved the issue for you?
What is the SF meaning? Why does it like what you said, the dimension is 50mm rather than 500mm in real manufacture SF showed in the schema of PLD, Is there any more explaination?
