    Horiz Geometry Text made draggable

    Options
    80 Views, 1 Replies
    12-14-2012 06:34 AM

    Hello All,

    I am new to developing styles so I am hoping this is an easy request. My profile style settings are great but my Horizontal Geometry Text is overlapping. I want to be able to drag the text to keep it legible. Simlar to PI and PB labels on the horizontal alignment. I included an image to claerify my question.



    Regards,

    Steve

    Attachment C3D Label Style Issue.JPG ‏27 KB
    Report Inappropriate Content
    Message 1 of 2 (80 Views)
    Reply
    0 Kudos
    Please use plain text.

    *Expert Elite*
    *Expert Elite*
    Posts: 3,052
    Registered: ‎07-22-2003

    Re: Horiz Geometry Text made draggable

    Options
    12-14-2012 06:43 AM in reply to: sb11273

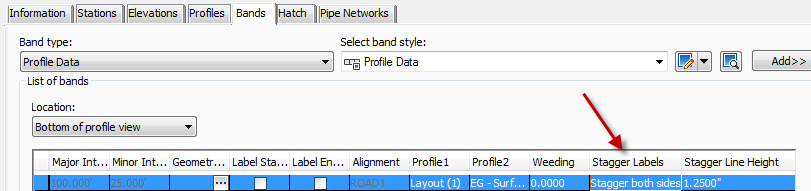

    In the Profileview properties dialog, Bands tab, scroll the view to the right, turn on Staggering:



    12-14-2012 6-41-17 AM.png

    Jeff_M, also a frequent Swamper
