draw arc tangent to a circle and a point

1581 Views, 3 Replies
10-24-2012 12:31 PM

Hello House,



I am new here but I need help on how to draw an arc tangent to a circle and a point.

The attachement here is a detail of the problem I'm having. No 9

Please profer solution.

Thank you

Distinguished Mentor
steven-g
Posts: 531
Registered: ‎05-11-2009
Message 2 of 4 (1,566 Views)

Re: draw arc tangent to a circle and a point

10-24-2012 01:24 PM in reply to: waridel

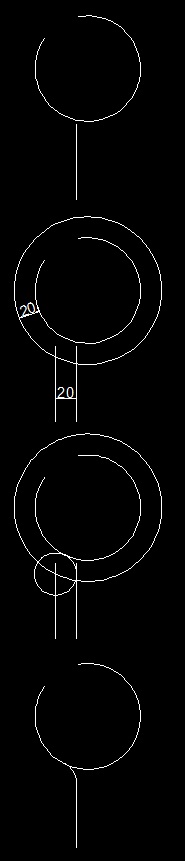

Draw offsets from your items, draw a circle the same radius as your offset distance at the point where line cross, and then trim where you need too.




Regards Steven Gray
Setting Out (Joinery Manufacturing)
Autocad 2013LT
Windows 7 professional
Member
waridel
Posts: 3
Registered: ‎10-24-2012
Message 3 of 4 (1,537 Views)

Re: draw arc tangent to a circle and a point

10-24-2012 10:29 PM in reply to: steven-g

please attemt the head of the spanner not the handle

Thanks alot





Distinguished Mentor
steven-g
Posts: 531
Registered: ‎05-11-2009
Message 4 of 4 (1,511 Views)

Re: draw arc tangent to a circle and a point

10-25-2012 11:53 AM in reply to: waridel

You can draw the circle with a radius of 53 and the two lines that form the mouth of the spanner, all that information is given on the sketch. The curve you want I think is 30 but it is difficult to make out on the image, but using 30 all you need do is offset from the head of the spanner by 30, your new curve centre has to be somewhere on that offset  line. You cant offset from a point but you can draw a circle of 30 centred on that point, where these two lines cross is the centre you want.

Regards Steven Gray
Setting Out (Joinery Manufacturing)
Autocad 2013LT
Windows 7 professional
